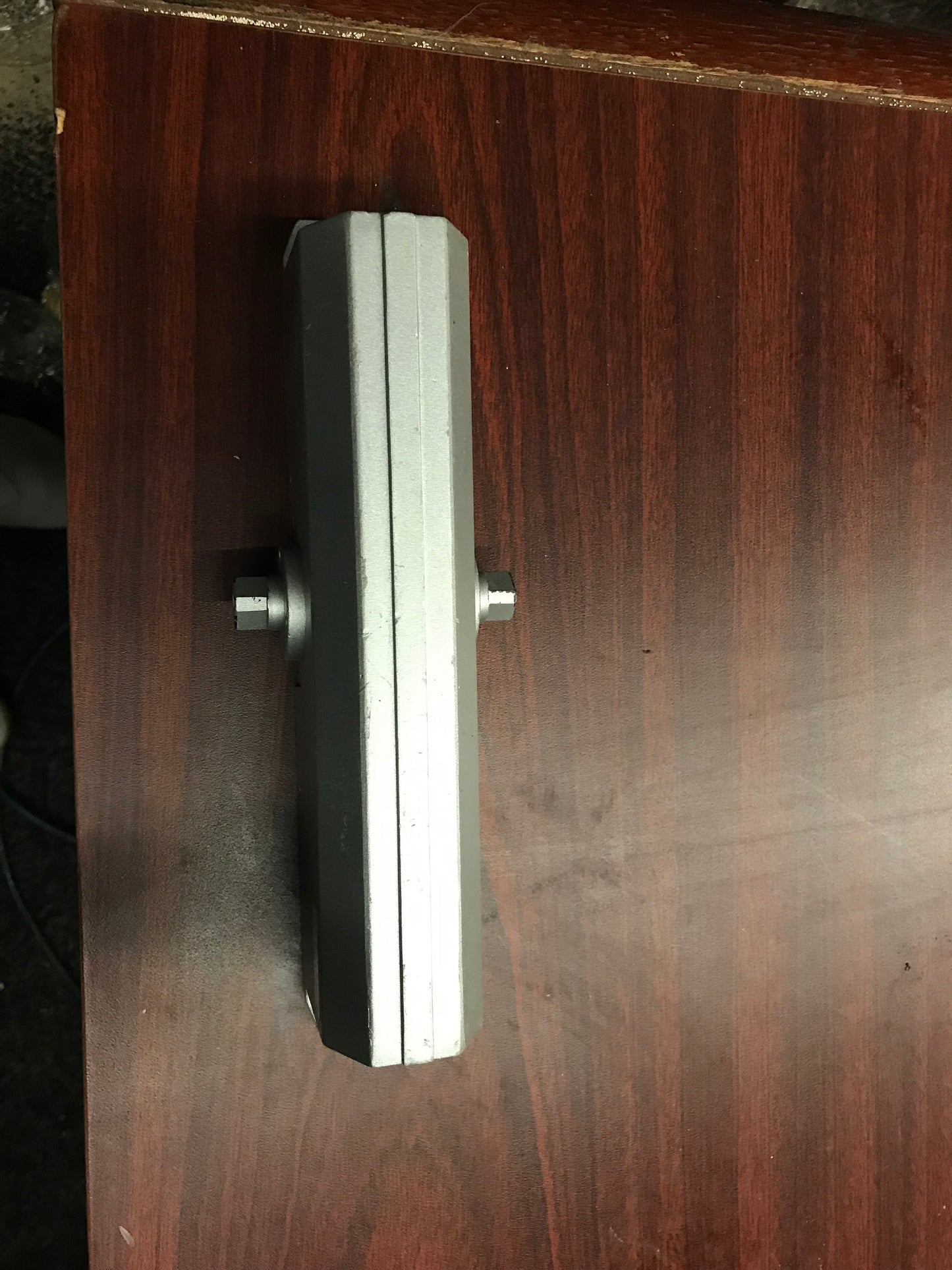

B00012 - Hager Companies 5300 Series Door Closer For Commercial Door 47V5 - Body only

Applications:

• Grade 1 heavy duty surface door closer adjustable sizes 1-6
• Ideal for schools, hospitals, and other high-use environments

Arms & Brackets (NOT INCLUDED):

• Tri-Pack - regular, top jamb, and parallel arms - Standard
• 15% power adjustment in standard arm for regular and top jamb mount

Certifications:

• BHMA Certified ANSI A156.4, adjustable sizes 1-6
• ADA compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for up to 3 hours
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• 5300 Door Closer EPD

Cover:

Full plastic cover and pinion cap

Door Thickness:

• 1-3/4" (44 mm)- standard
• 1-3/8" - 2-1/4" (36 mm - 57 mm) - optional

Fasteners:

• Self-reaming, self-tapping wood and machine screws
• Sex nuts and bolts

Finishes:

• Rust inhibiting primer - Standard

Maximum Door Weight: 250 lbs

Notes

• To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges.
• The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
• Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door

Optional Arms (NOT INCLUDED):

• Tri-Pack Arm (Regular, Top Jamb and Parallel with Parallel Arm Bracket)- Standard
• Hold Open Arm (HO) - 5910
• Pull Side Stop Arm (PSS) - 5926
• Pull Side Hold Open Stop Arm (PSHOS) - 5927
• Extra Heavy Duty Arm - (HD) - 5911
• Extra Heavy Duty Stop Arm ( HDS) - 5907
• Extra Heavy Duty Hold Open Stop Arm (HDHOS) - 5906
• Extra Heavy Duty Hold Open Arm (HDHO) - 5912
• Extra Heavy Duty Cushion Stop Arm (HDCS) - 5957
• Extra Heavy Duty Hold Open Cushion Stop Arm (HDHOCS) - 5956
• Hold Open Stop Track Arm (HOTA)
• Non-Hold Open Stop Track Arm (NHOTA)
• Double Egress Hold Open Track Arm (DEHOTA)
• Double Egress Non-Hold Open Track Arm (DENHOTA)

Product Description

Grade 1 Heavy Duty Door Closer

Springs

• One piece seamless steel spring tube
• Double heat-treated, steel-tempered springs
• Precision-machined, heat-treated steel piston

Valves

• Adjustable backcheck, sweep, and latching valves- standard
• Delayed action valve - optional
• All valves are staked
