Magtech Industries Corp, OSRAM, GREAlpha, Fulham Workhorse, MW Mean Well, Self, Hatch Transformers Inc. , Fulham ThoroLED, Pony, Royal, HEP Group, Everline, Cooper Lighting, B+L Technologies

E00031 - LED Drivers and Power Supply

E00031 - LED Drivers and Power Supply

Choose between free in-store pickup (Tampa, FL) or various shipping options available.

Kindly utilize the designated form to submit an offer in the absence of a listed price.

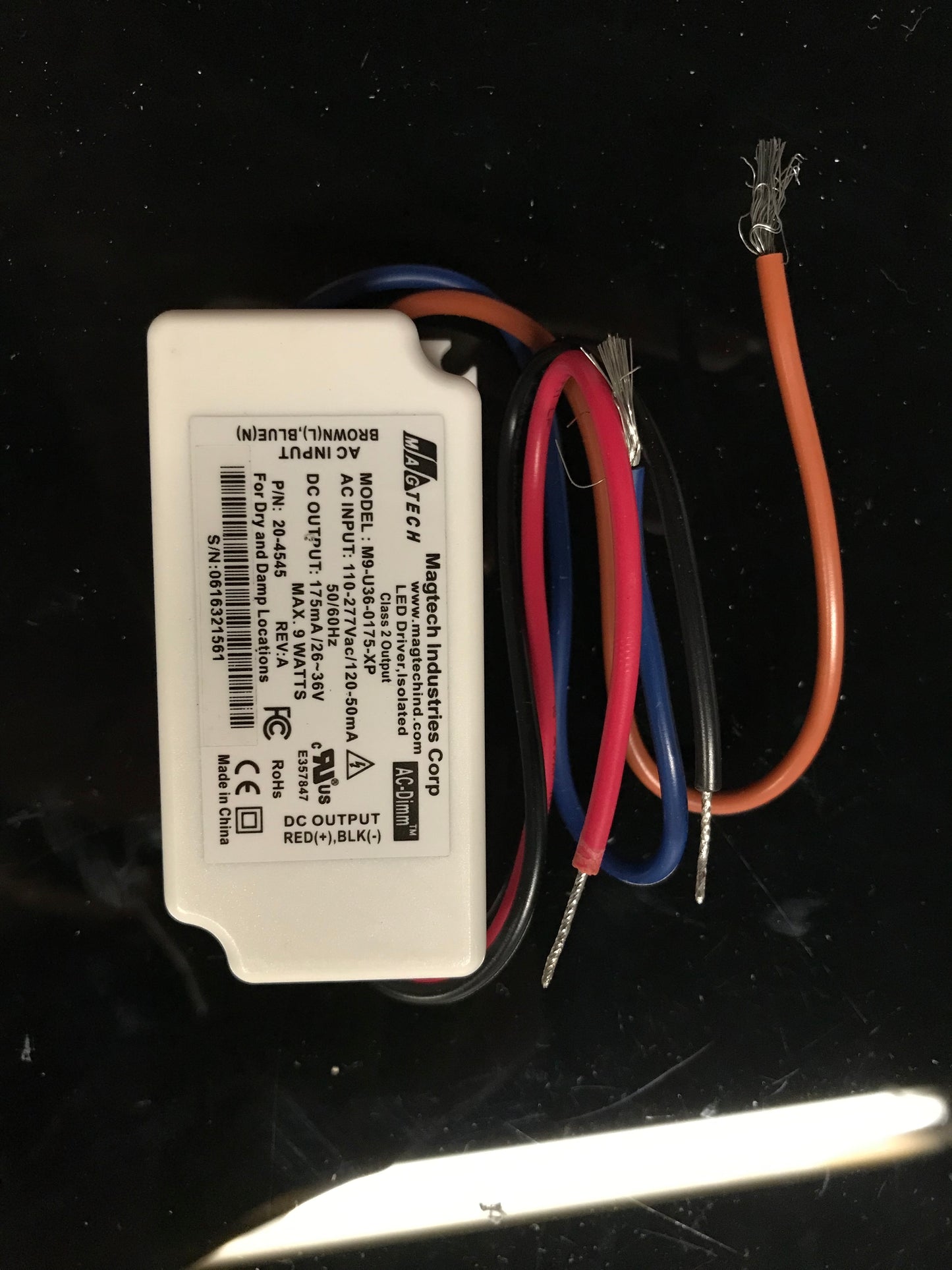

magtech Isolated LED Driver (m9-u36-0175-xp)

The M-series is small in mechanical size, multi-functional, low-wattage, low-cost. The M9-U is a 20-Watt, Class 2, Single Output, Switch-mode, LED Driver, C/C, w/AC-DIMM® trailing edge dimming (ELV) over the full input voltage range from 110-277VAC.

Output Voltage: 26-36V

Output Current: 175mA

osram optotronic 40W LED Power Supply (0t40w/prg1400c/unv/dim)

40W Programmable AC DC Converter
Input Voltage: 120/277 VAC
Output Voltage: 10-55V DC
Output Current: 400-1400mA programmable, FACTORY SET TO 700mA
0-10V Analog Dimming 10%-100%
F-style: Mounting Feet

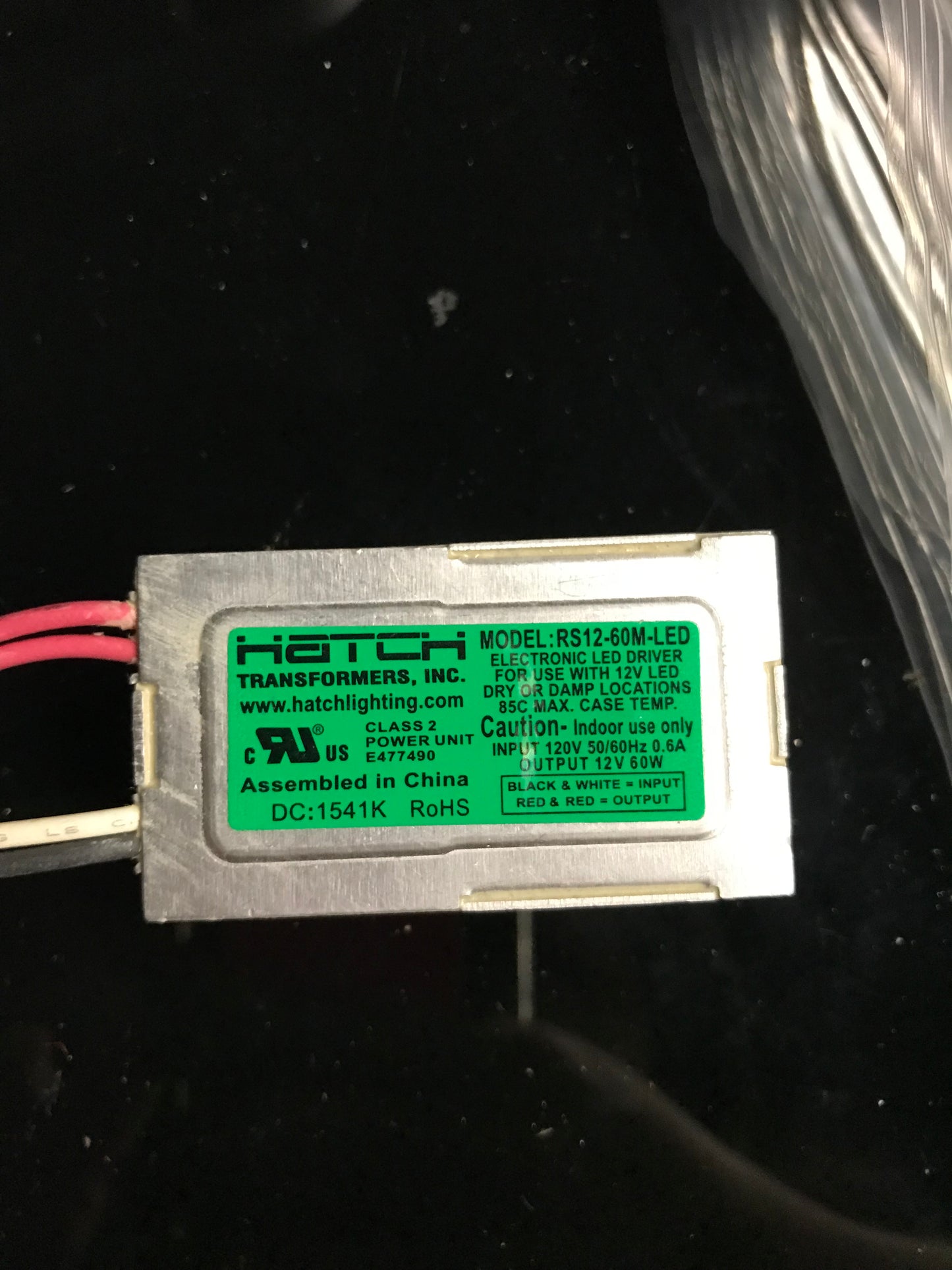

hatch transformers electronic led driver (rs12-60m-led)

Input Voltage: 120VAC
Output Voltage:
Wattage: 60W
Dimming: Phase
UL Recognized
Wire Feed: Side

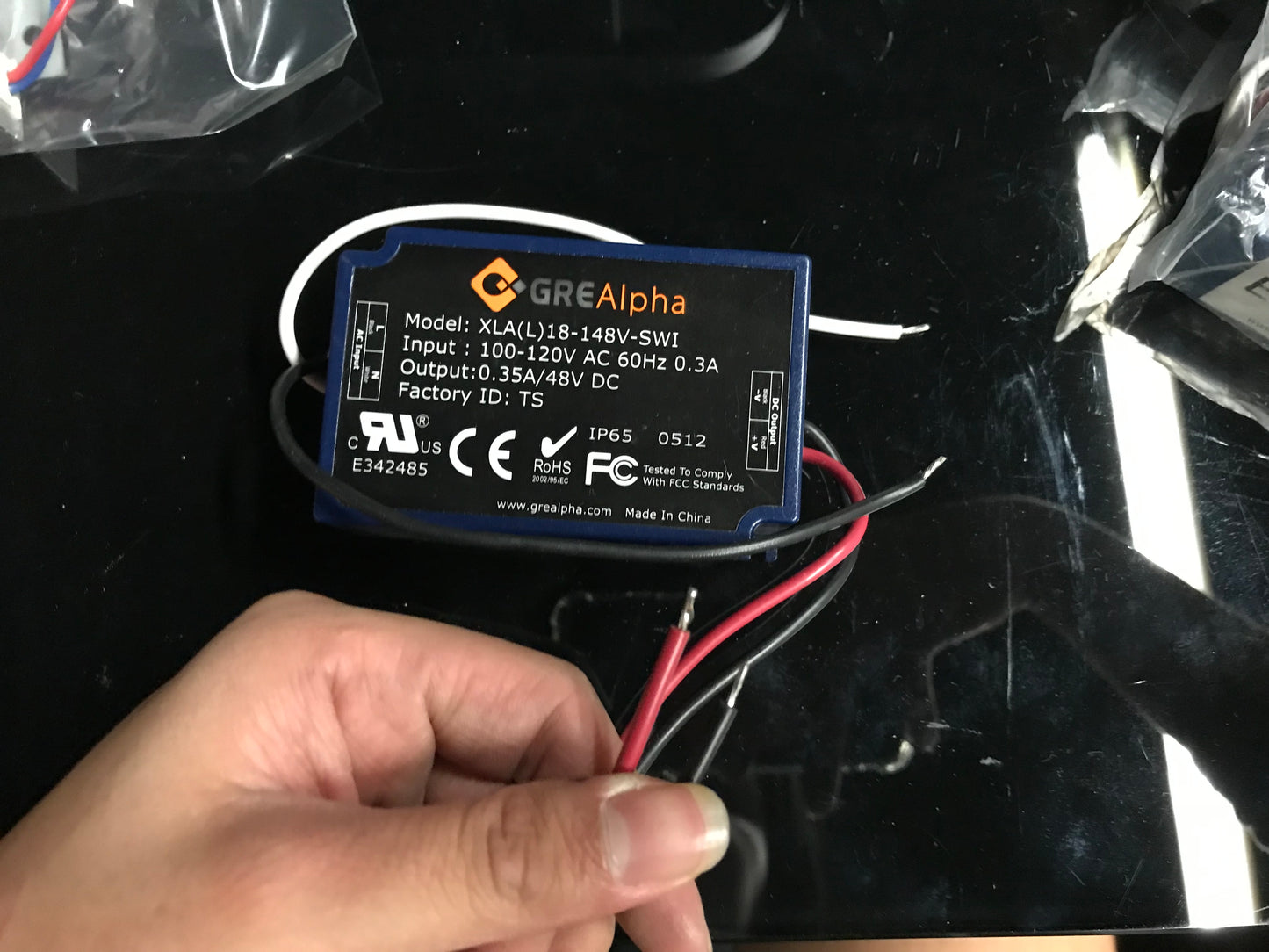

erg alpha (xla(l)18-148v-swi)

Energy-efficient LED driver that delivers smooth and flicker-free AC line dimming. Provided with either a 90-132 VAC input or a 180-264 VAC input option. Fully tested to work with a wide range of TRIAC and ELV dimmer switches on the market and dims to full off. Energy Star/CEC compliant and meets UL,cUL,CE, CB, FCC class B and other international regulatory requirements.

(CC) Constant Current Output Power: 18W, 48V, 0.35A Input: 100-120VAC. Power Factor >.90 Total Harmonic Distortion (THD) <.20 Dimming Triac/ELV 0-100% dimming.

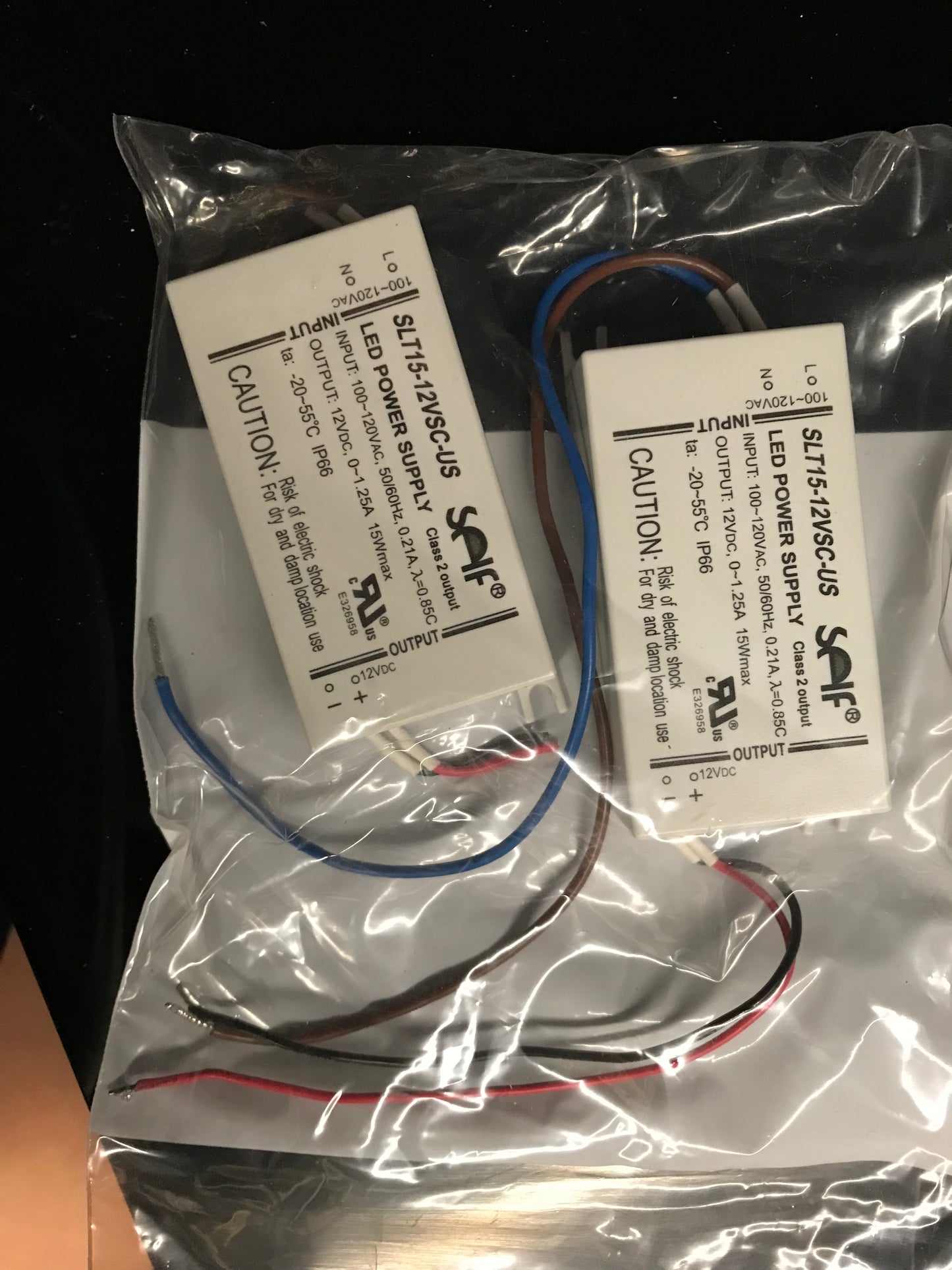

self led power supply (slt15-12vsc-us)

This series was designed for compromise between an attractive price and high performance,which meets SELV standard of preventing electric shock. Protection of open circuit, short circuit, over load and over temperature increased safety in processing. Low standby power consumption complies with ERP directives. Optimized electric circuit design brings cost-effectiveness.

Input: 100-120 VAC, 50/60Hz
Output: 12VDC

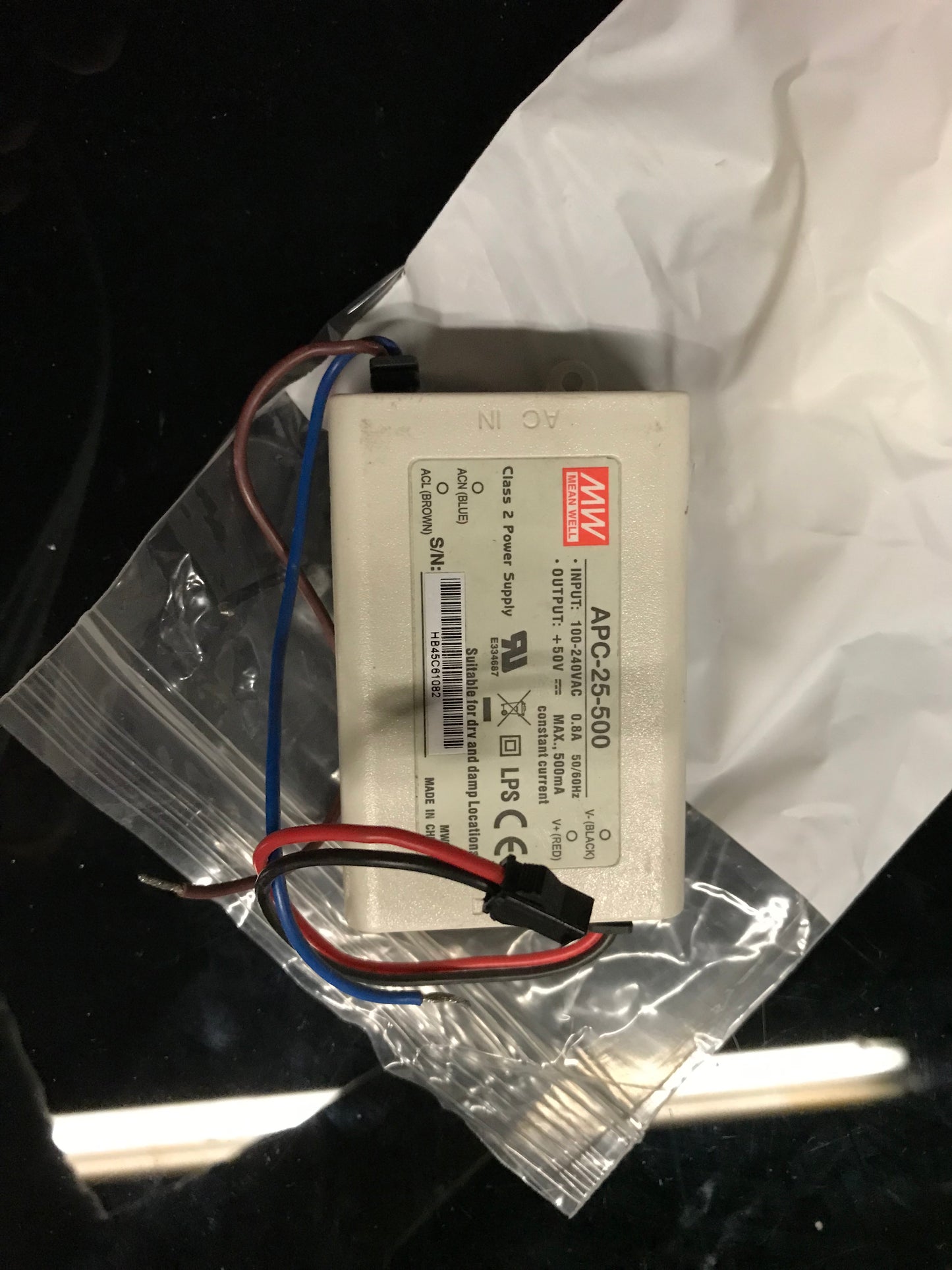

mean well class 2 power supply (apc-25-500)

Topology: AC DC Converter
Number of Outputs: 1
Voltage - Input (Min): 90VAC
Voltage - Input (Max): 264VAC
Voltage - Output: 15 ~ 50V
Current - Output (Max): 500mA
Power (Watts): 25 W
Voltage - Isolation: 3 kV
Features: OVP, SCP
Ratings: IP42
Operating Temperature: -30°C ~ 70°C
Efficiency: 83%
Termination Style: Wire Leads

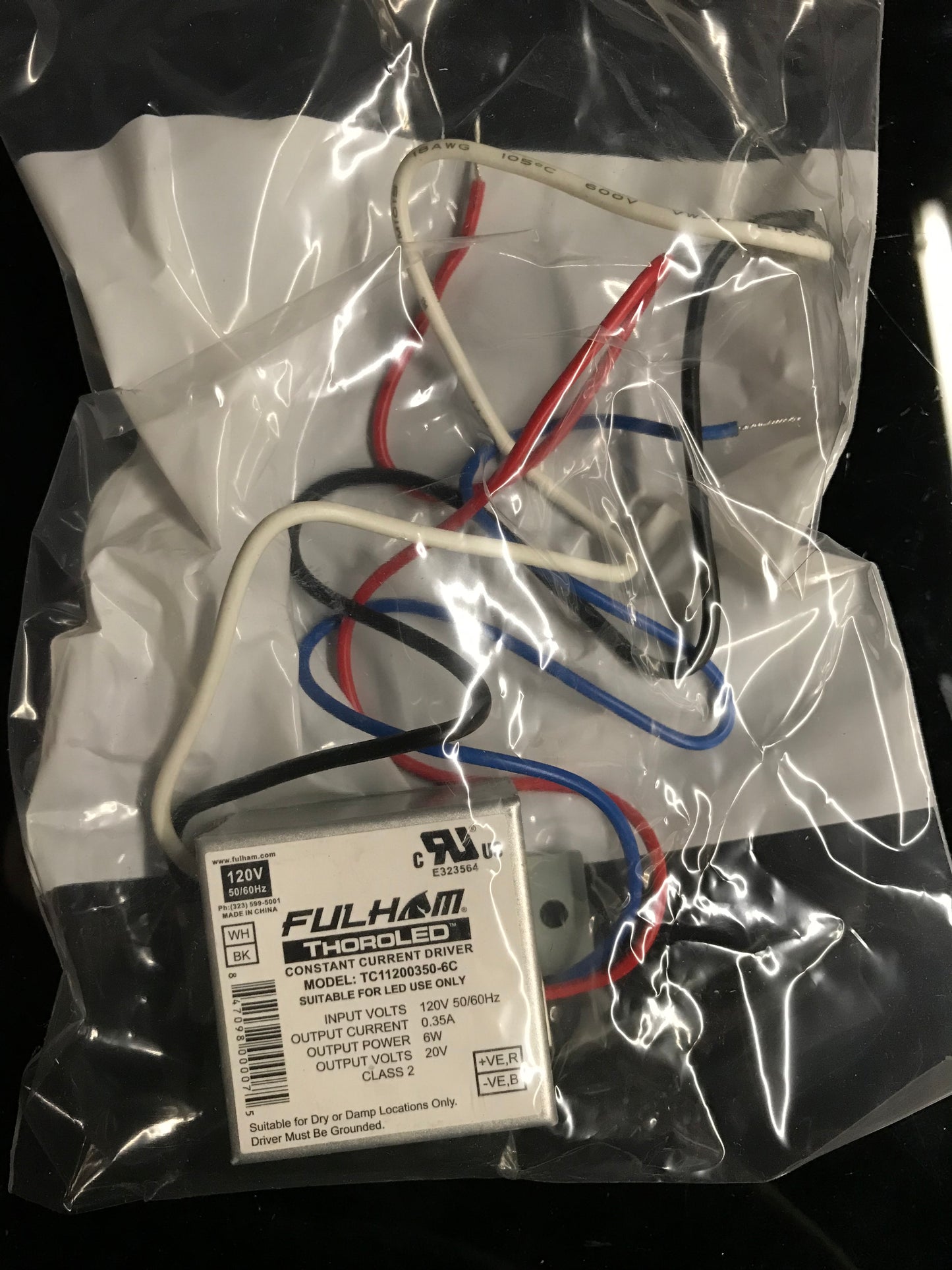

fulham thoroled constant current driver (tc11200350-6c)

A 6 watts dimming LED driver that has independent direct current power supply with 120VAC dedicated input voltage.

THD:: < 20%
Height (in.):: .98
Length (in.):: 1.77
Width (in):: 0.50
Case Quantity: 100
Catalog No: 00007
Family: ThoroLED
Life Hours: 50,000
Voltage: 120V
Wattage: 6 Watt

View full details
